Monkey Bar Pull up Rig

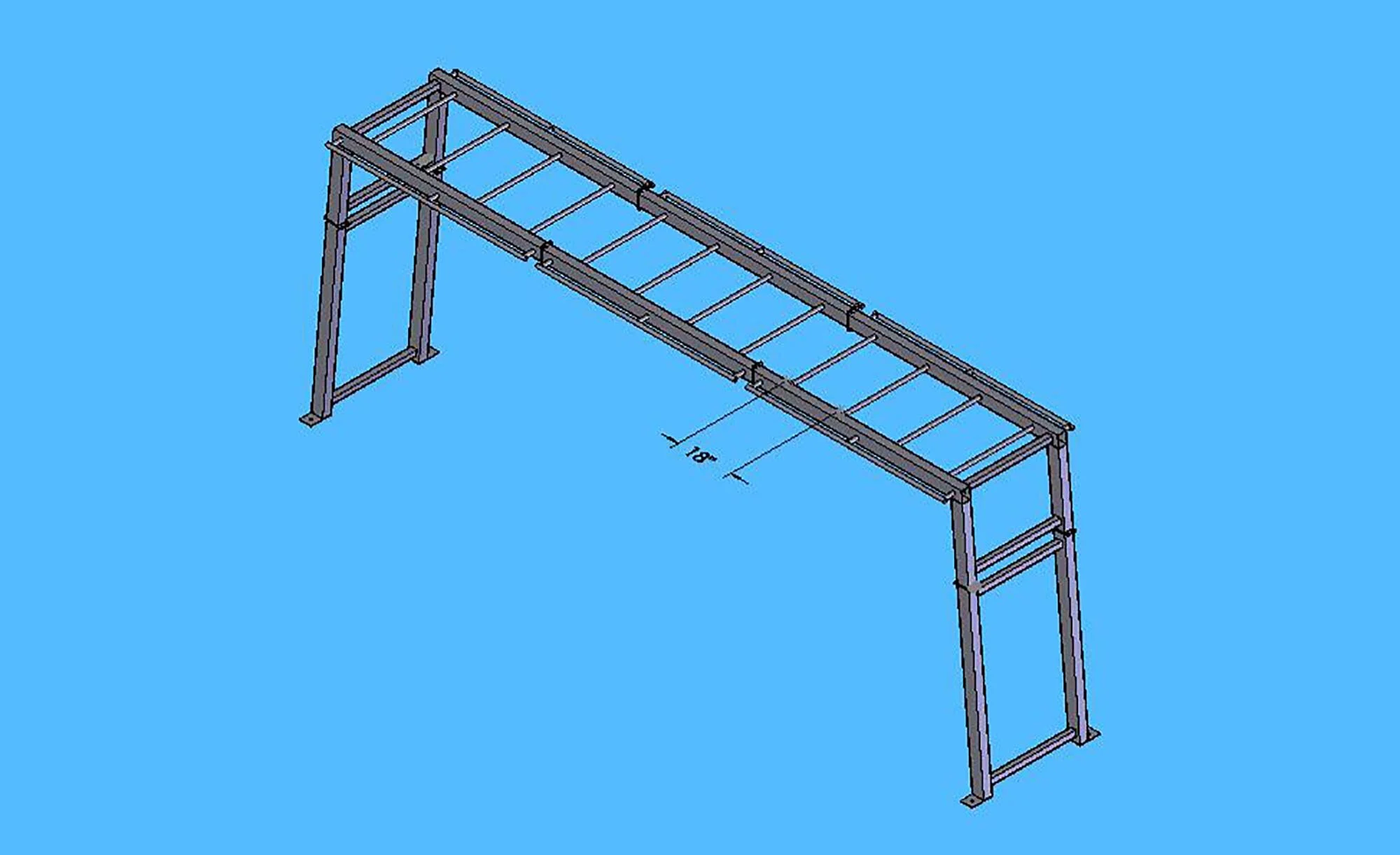

I designed a fabricated this for a gym. It was made in 5 separate pieces and bolted together on site. It was a pretty long span to just be supported on either end so I reinforced the upper section with steel cables. I ran the cables and pretensioned them to a steel I-beam in the ceiling.
